| 产品特性：配电保护 | 是否进口：否 | 产地：中国 |
| 品牌：Fuji/富士 | 型号：EA203C | 壳架电流：100A |
| 分断能力：50KAV | 极数：3P | 额定电流：100A |
| 附件代号：10001 | 脱扣器型号：SHT | 安装方式：固定式 |
| 接线方式：板后接线 | 操作方式：手柄直接操作 | 保护用途：配电控制 |
| 附件说明：无 | 漏电动作电流：30ma | 漏电动作时间：3s |
| 订货号：EA203C 200A | 额定工作电压：380V | 机械寿命：100000 |
| 电气寿命：750000 | 外形尺寸：135X145X55mm | 脱扣型式：热磁式 |
| 附件电压：220 | 脱扣器额定电流：12*** | 用途：剩余电流保护 |
| 额定绝缘电压：380V | 特性：智能型 | 壳盖：常规 |
| 灭弧介质：空气式 | 保护类型：1 | 脱扣方式：欠电压脱扣器 |
| 应用场景：电动机控制与保护 | 延时时间：1s | 剩余电流：30mA |
| 极限不驱动时间：1s | 额定运行短路分段能力Ics：50KA | 额定极限短路分断能力Icu：50KA |
| 产品认证：CE | 最小包装数：1 | 物料编号：EA203C 200A |
| 是否专供外贸：否 | 3C额定电压范围：交流额定电压1500V | 型号报价：330 |
| 货号：EA203C 200A | 是否跨境货源：否 | 产品系列：EA系列 |
| 系列：EA |

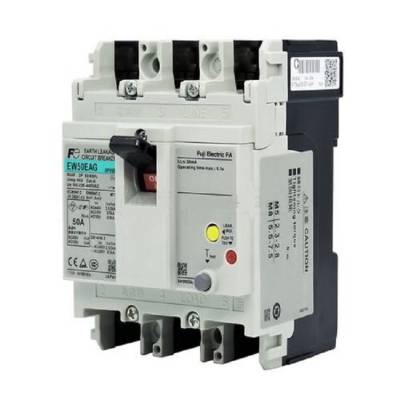

漏电断路器G-TWIN系列 [全球型]
标准型号也对应国际规格(CCC/JIS/UL/CSA/IEC/CE/ )，小型而高性能。产品阵容增加到4型号。 125-400AF的新型塑壳式断路器
针对缺相故障采用新三相电源电路
IEC60947-2修订版要求漏电断路器即使在三相电路出现欠相的情况下，也能在发生漏电故障时实现脱扣保护。G-TWIN能满足此项要求。
装备了耐电压试验切换开关
在进行耐电压试验时，由于在检查过程中无需拆除漏电断路器的接线，可大幅提高作业效率（12***F及以上设备配备此开关）。
富士断路器EA SA系列特点：结构紧凑 额定运行短路能力（Ics）已经达到了额定极限短路分断能力（Icu）的50%。所有附件都可由用户自行组装，以此快速适应各种现场规格变更。符合IEC标准，力争满足全球标准。Ｅ：小型经济品
适用于短路电流较小的电路。
可进行小型、价廉等***经济性的板设计。
30～22***范围内的进深为60mm。
Ｓ：标准品
可用于1500～2000kVA范围的设备容量。
机种型号：
EA32C(3A,***,10A,1***,20A,30A)
EA33C(3A,***,10A,1***,20A,30A)
EA52C(40A, 50A)
EA53C(40A, 50A)
EA63C(60A)
EA103C(7***,100A)
EA203C(12***,150A,17***,200A)
EA403C(250A,300A,350A,400A)
EA603RC(600A)
EA803RC(800A)
SA32C(3A,***,10A,1***,20A,30A)
SA33C(3A,***,10A,1***,20A,30A)
SA52C(40A, 50A)
SA53C(40A, 50A)
SA63C(60A)
SA103C(7***,100A)
SA203C(12***,150A,17***,200A)
SA403C(250A,300A,350A,400A)
SA603RC(600A)
SA803RC(800A)
系列 | BW | ||||
框架电流 | 100A | 160A | 250A | ||
极数 | 3 | 2 | 3 | 2 | 3 |
型号 | BW103EO | BW162EO | BW163EO | BW252EO | BW253EO |
额定电流（A) | 15,20,25,30,40, 50,60,75,80,100 | 100,125, | 175,200, | ||
额定分断容量（kA） 400VAC [GB14048.2](lcu/lcs)380VAC 230VAC | 15/4 | 18/9 | 18/9 | ||
富士电机BW系列朔壳断路器 | |
型 号 | 额定电流（A） |
BW103E0 | 15,20,25,30,40,50,60,75,80,100 |
BW102S0 | 15,20,25,30,40,50,60,75,80,100 |
BW103S0 | 15,20,25,30,40,50,60,75,80,100 |
BW162E0 | 100,125,150,160 |
BW163E0 | 100,125,150,160 |
BW162J0 | 100,125,150,160 |
BW163J0 | 100,125,150,160 |
BW162S0 | 100,125,150,160 |
BW163S0 | 100,125,150,160 |
BW252E0 | 175,200,225,250 |
BW253E0 | 175,200,225,250 |
BW252J0 | 175,200,225,250 |
BW253J0 | 175,200,225,250 |
BW252S0 | 175,200,225,250 |
BW253S0 | 175,200,225,250 |
BW32AAG 3A,***,10A,1***,20A,32A
BW32SAG 3A,***,10A,1***,20A,32A
BW50EAG ***,10A,1***,20A,32A,40A,50A
BW50SAG ***,10A,1***,20A,32A,40A,50A
BW50RAG 10A,1***,20A,32A,40A,50A
BW63EAG 63A
BW63SAG 63A
BW63RAG 63A
BW100EAG 50A,63A,7***,100A
BW103E0 1***,20A,2***,30A,40A,50A,60A,7***,80A,100A
BW102S0 1***,20A,2***,30A,40A,50A,60A,7***,80A,100A
BW103S0 1***,20A,2***,30A,40A,50A,60A,7***,80A,100A
H103CA 16A,2***,32A,40A,50A,63A,80A,100A2
H104CA 16A,2***,32A,40A,50A,63A,80A,100A
BW125JAGC 1***,2***,32A,40A,50A,63A,80A,100A
BW125SAGC 1***,2***,32A,40A,50A,63A,80A,100A
BW125RAGC 1***,2***,32A,40A,50A,63A,80A,100A
BW162E0 100A,12***,150A,160A
BW163E0 100A,12***,150A,160A
BW162J0 100A,12***,150A,160A
BW163J0 100A,12***,150A,160A
BW160JAGC 12***,150A,160A
BW162S0 100A,12***,150A,160A
BW163S0 100A,12***,150A,160A
BW160SAGC 12***,150A,160A
BW160RAGC 12***,150A,160A
H163CA 12***,160A
H164CA 12***,160A
BW252E0 17***,200A,22***,250A
BW253E0 17***,200A,22***,250A
BW252J0 17***,200A,22***,250A
BW253J0 17***,200A,22***,250A
BW250JAGC 17***,200A,22***,250A
BW252S0 17***,200A,22***,250A
BW253S0 17***,200A,22***,250A
BW250SAGC 17***,200A,22***,250A
BW250RAGC 17***,200A,22***,250A
H253CA 17***,200A,22***,250A
H254CA 17***,200A,22***,250A
BW400EAGC 12***,300A,350A,400A
BW400SAGC 12***,300A,350A,400A
BW400RAGC 12***,300A,350A,400A
BW400HAGC 1250A,300A,350A,400A
BW630EAGC 500A,600A,630A
BW630HAGC 500A,600A,630A
BW800EAGC 700A,800A
BW800RAGC 700A,800A
BW800HAGC 700A,800A
SA1003E电流可调500-600-700-800-900-1000
SA1004E电流可调500-600-700-800-900-1000
SA1203E电流可调600-700-800-1000-1200
SA1204E电流可调600-700-800-1000-1200
SA1603E电流可调800-900-1000-1200-1400-1600
SA1604E电流可调800-900-1000-1200-1400-1600
分励脱扣
SA403RC BZ6FA10C SA603RC BZ6FK10C SA803RC BW103E0 BW9N0B0 BW9BTBA-L3
BW102S0 BZ-N40C BZ-TS40B BW103S0 BW9V0B0 BZ-TB40B BW162E0 BZ6V40C
BZ-NP-1C BW163E0 BW9W1SB0 BW162J0 BW9W1SG0-CC BW163J0
BW9K1SB0 BW162S0 BW91KSG0-CC BW163S0 BW9FAB0 BW252E0 BW9FKB0
BW252E0 BW9FAB0 BW253E0 BW9FKG0-CC BW252J0 BW9Q1B0 BW253J0
BW9Q1G0-CC BW252S0 BW9BPB0 BW253S0 BZ-B40B BW125JAGC-2P
EW125JAGC-3P BW32AAG-2PCJ BW50RAGU-2PCJ EW32AAG-2PCJ EW50RAGU-3PCJ BW125JAGC-3P EW125JAGC-4P BW32AAG-3PCJ BW50RAGU-3PCJ EW32AAG-3PCJ
EW100EAGU-2PCJ BW125JAGC-4P EW125SAGC-3P BW32SAG-2PCJ BW100EAGU-2PCJ EW32EAG-3PCJ
EW100EAGU-3PCJ BW125SAGC-2P EW125SAGC-4P BW32SAG-3PCJ BW100EAGU-3PCJ EW32SAG-3PCJ
EA125JGU-3PCJ BW125SAGC-3P EW125RAGC-3P BW50AAG-2PCJ BW125RAGU-2PCJ EW50AAG-2PCJ
EW125RAGU-3PCJ BW125SAGC-4P EW125RAGC-4P BW50AAG-3PCJ BW125RAGU-3PCJ EW50AAG-3PCJ
EW250JAGU-3PCJ BW125RAGC-2P EW160EAGC-3P BW50EAG-2PCJ BW250EAGU-2PCJ EW50EAG-3PCJ
EW250RAGU-3P BW125RAGC-3P EW160JAGC-3P BW50EAG-3PCJ BW250EAGU-3PCJ EW50SAG-3PCJ
EW400SAGU-3P BW125RAGC-4P EW160JAGC-4P BW50SAG-2PCJ BW250JAGU-2PCJ EA50RAG-3PCJ
EW400RAGU-3P BW160EAGC-2P EW160SAGC-3P BW50SAG-3PCJ BW250JAGU-3PCJ EW63SAG-3PCJ
EW400HAGU-3P BW160EAGC-3P EW160SAGC-4P BW50RAG-2PCJ BW250RAGU-2PCJ EW100EAG-2PCJ
BW160JAGC-2P EW160RAGC-3P BW50RAG-3PCJ BW250RAGU-3PCJ EW100AAG-3PCJ
BW160JAGC-3P EW160RAGC-4P BW63EAG-2PCJ BW400EAGU-2PCJ EW100EAG-3PCJ
BW160JAGC-4P EW250EAGC-3P BW63EAG-3PCJ BW400EAGU-3PCJ EW125JAG-3PCJ
BW160SAGC-2P EW250JAGC-3P BW63SAG-2PCJ BW400SAGU-2PCJ EW125JAG-4PCJ
BW160SAGC-3P EW360JAGC-4P BW63SAG-3PCJ BW400SAGU-3PCJ EW125RAG-3PCJ
BW160SAGC-4P EW250SAGC-3P BW100EAG-2PCJ BW400RAGU-2PCJ EW125RAG-4PCJ
BW160RAGC-2P EW250SAGC-4P BW100EAG-3PCJ BW400RAGU-3PCJ EW250EAG-3PCJ
BW160RAGC-3P EW250RAGC-3P BW125JAG-2PCJ BW630RAGU-3PCJ EW250JAG-3PCJ
BW160RAGC-4P EW250RAGC-4P BW125JAG-3PCJ BW800RAGU-EPCJ EW250JAG-4PCJ
BW250EAGC-2P
